Colour, white and varnish
Two Epson XP600 heads for colour, the white underbase and UV varnish finishing.
OBJECT CUSTOMIZATION · UV DTF

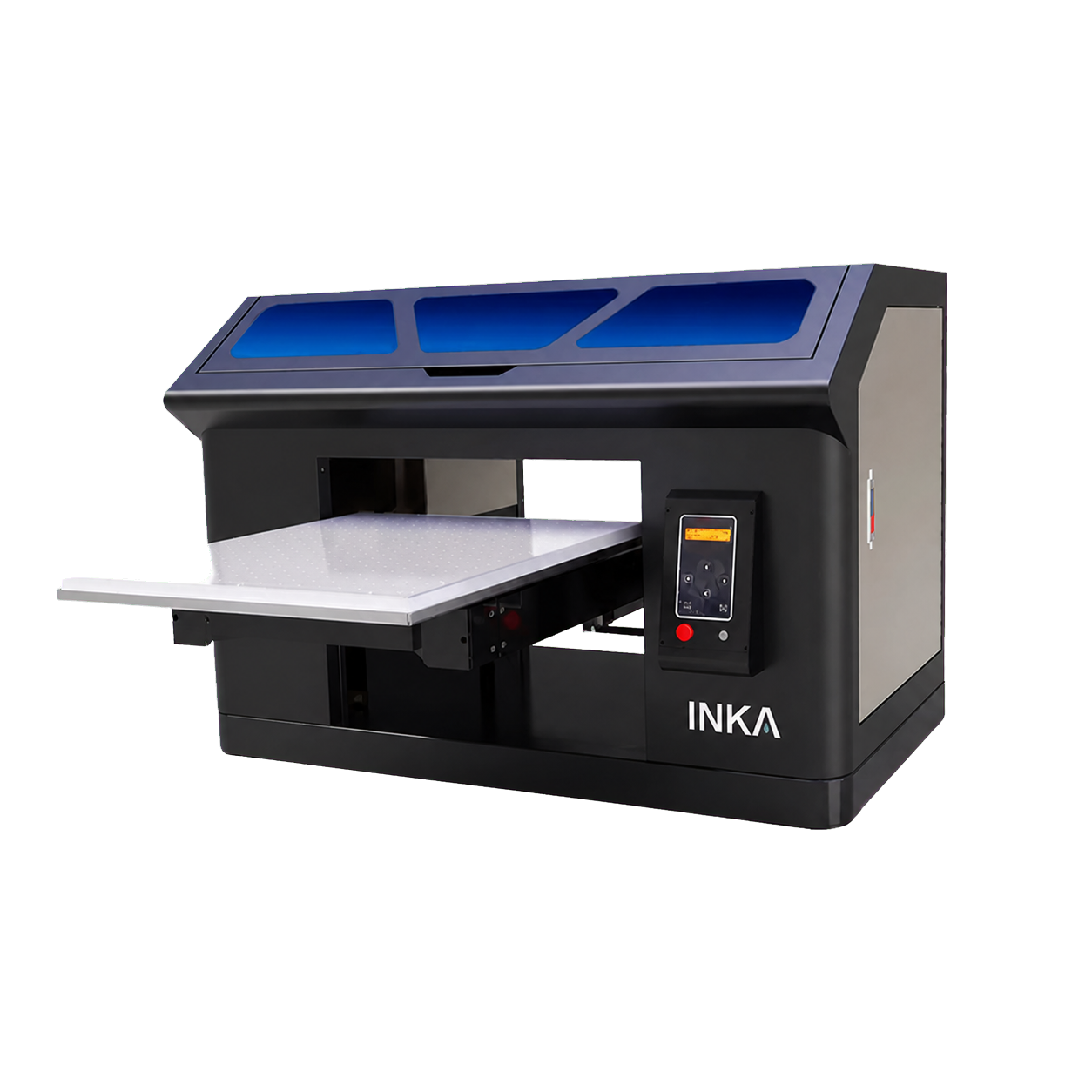

UV DTF A3
An A3 UV DTF system for decorating compatible objects and rigid surfaces, including glass, metal, acrylic and plastic.
USD 7,099
A3 UV DTF printer
Prices in US dollars. Shipping, applicable taxes and full package contents to be confirmed with your INKA partner.
- Technology
- UV DTF
- Format
- A3
- Stated width
- 350 × 450 mm
- Printheads
- 2 × Epson XP600
EVERYDAY OPERATION
The essential functions.
Flatbed printing
The vacuum bed holds the substrate in place. Height adjusts automatically for compatible objects.
Cold transfer
The design printed on UV DTF film transfers to a prepared surface without a heat press.
APPLICATIONS
Practical applications.
Decoration of compatible surfaces using cold UV DTF transfers.
Bottles
Mugs and containers
Panels and signage
Personalized objects
TECHNICAL SPECIFICATIONS
UV DTF A3 in detail.
The specifications of your INKA configuration.
| Parameter | INKA UV DTF A3 |
|---|---|
| Printing | |
| Technology | UV flatbed · objects and UV DTF film |
| Printheads | 2 × Epson XP600 |
| Print area | 350 × 450 mm |
| Maximum resolution | 1,440 × 1,440 dpi |
| Object height | Up to 130 mm |
| Height adjustment | Automatic · infrared sensor |
| Ink and media | |
| Inks | UV · CMYK + white + varnish |
| Ink tanks | 6 × 250 ml |
| Substrate hold-down | Microperforated vacuum bed |
| Cooling | Dual fans and cooled UV LEDs |
| Software and connectivity | |
| Computer | Windows 7 / 10 / 11 · 64-bit |
| Compatible RIP software | RIP software for WindowsLicense and version depend on the INKA offer. |
| Connection | USB 3.0 |
| Installation | |
| Power supply | 220 V · 50–60 Hz |
| Rated power | 350 W |
| Machine dimensions | 760 × 480 × 550 mm |
| Net weight | 55 kg |
Package configuration
- Equipment
- A3 UV DTF printer
- Consumables and software
- See package contents
Specifications may vary by configuration. Your INKA partner helps you choose the right equipment for your workshop.
Output is indicative and depends on the print mode, artwork and settings.
WORKSHOP SETUP
Preparing objects and films.
Consumables
UV inks, transfer films and maintenance products compatible with the INKA configuration.
Surface preparation
Clean and degrease the surface. Test adhesion and appearance on a sample before production.
Installation & maintenance
Windows PC, RIP software and a ventilated workspace. Follow the manual for ink handling and maintenance.
Customization on rigid surfaces
UV DTF transfers a design onto a compatible object. Adhesion depends on the material, its surface condition and preparation.
Your INKA partner helps you choose the configuration, install the system and maintain it.
Visit INKA support →THE INKA PACKAGE

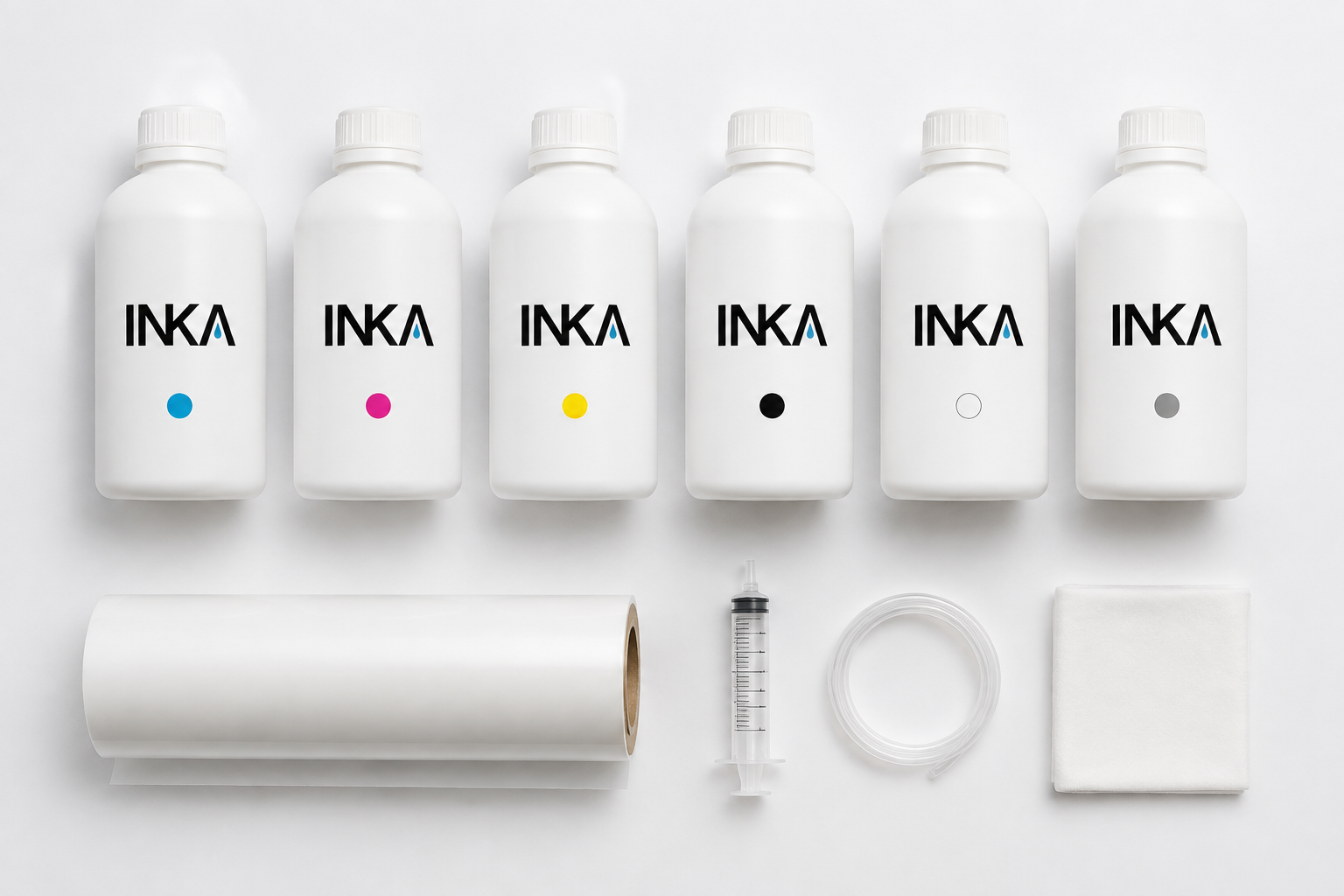

In the box.
Your UV DTF A3, with its equipment and accessories.
INKA UV DTF A3
INKA printer
UV DTF A3 · 2 × Epson XP600
INKA UV inks
6 × 250 ml · CMYK, white and varnish
UV DTF film
30 cm × 100 m
Cylindrical object attachment
For compatible mugs and bottles
Maintenance kit
Syringe, tubing and lint-free cloths
Connection cables
USB and power cables
RIP software
For Windows PCs · version depends on configuration
User guide
Operating instructions
Required separately: Windows PC and objects to customize.
Plugs, accessory references and software versions are matched to the configuration and your region.
